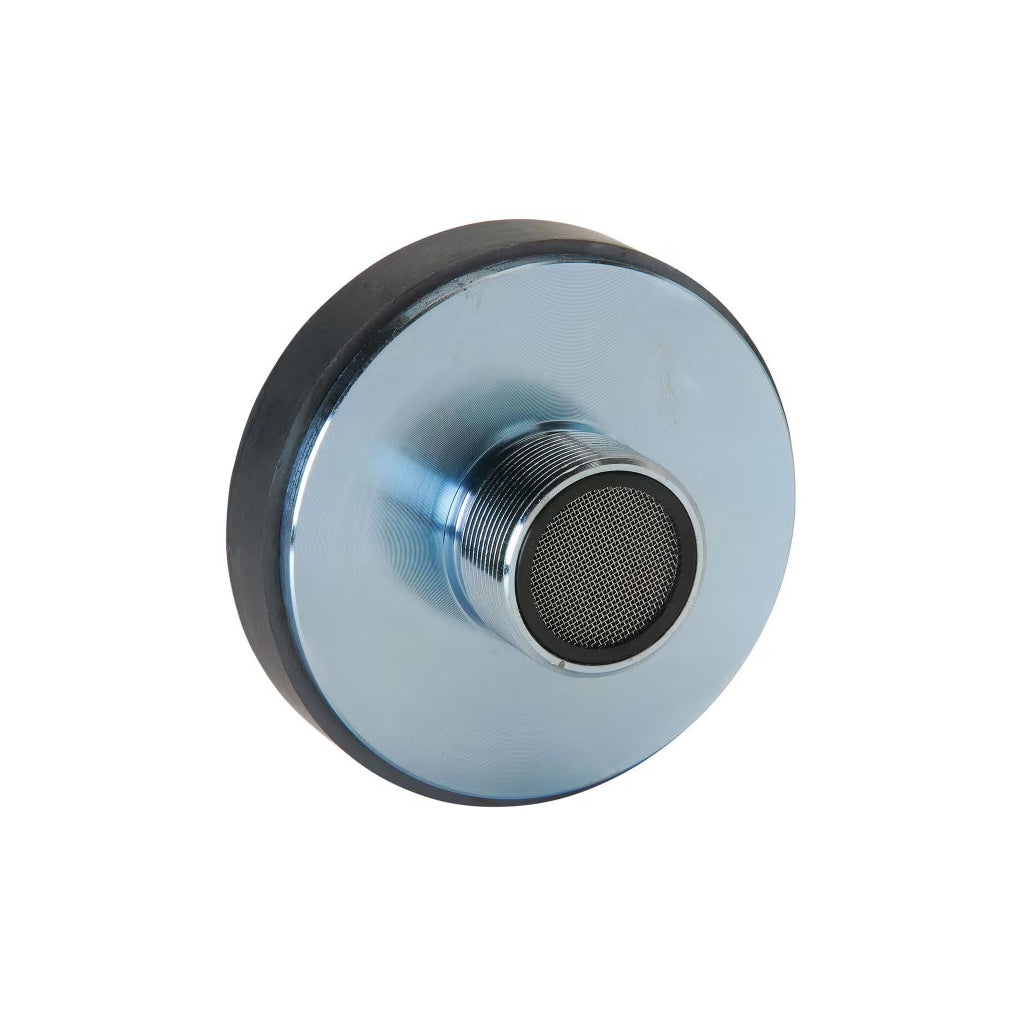

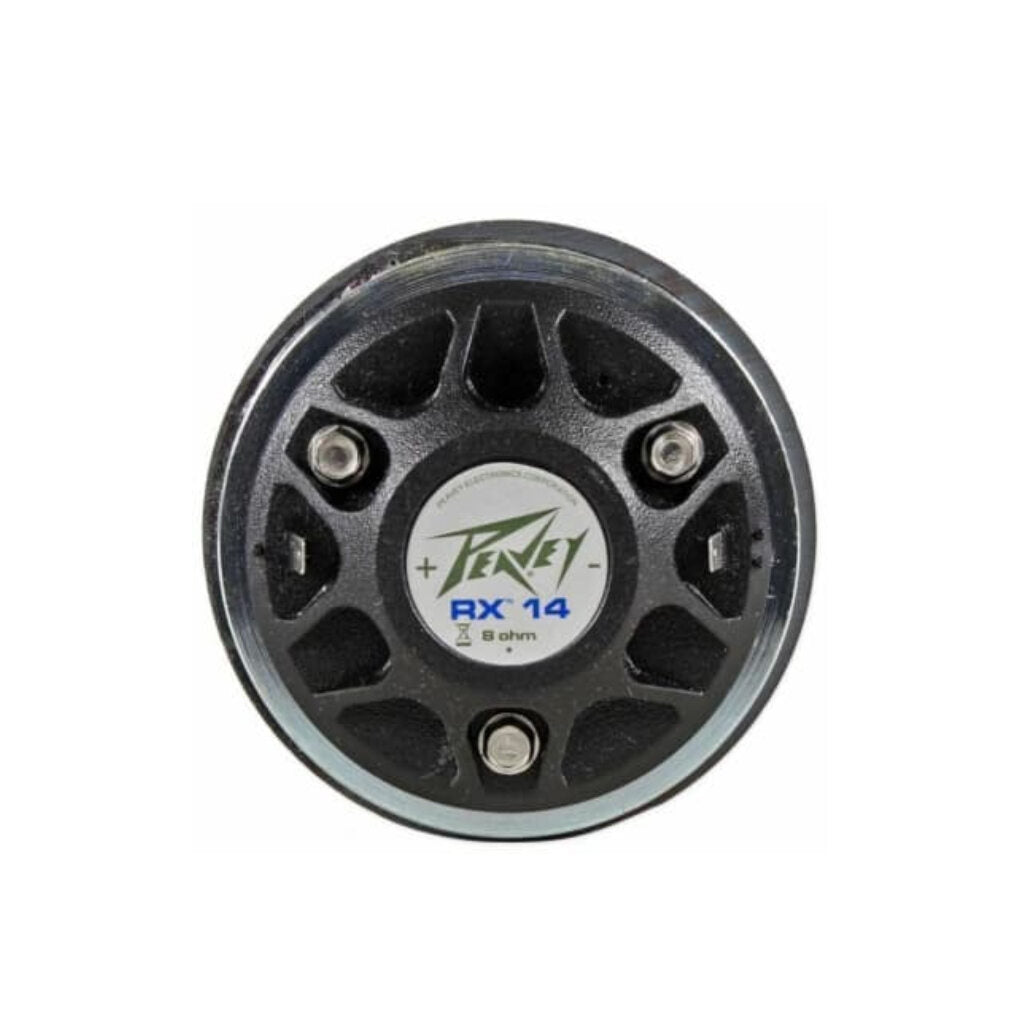

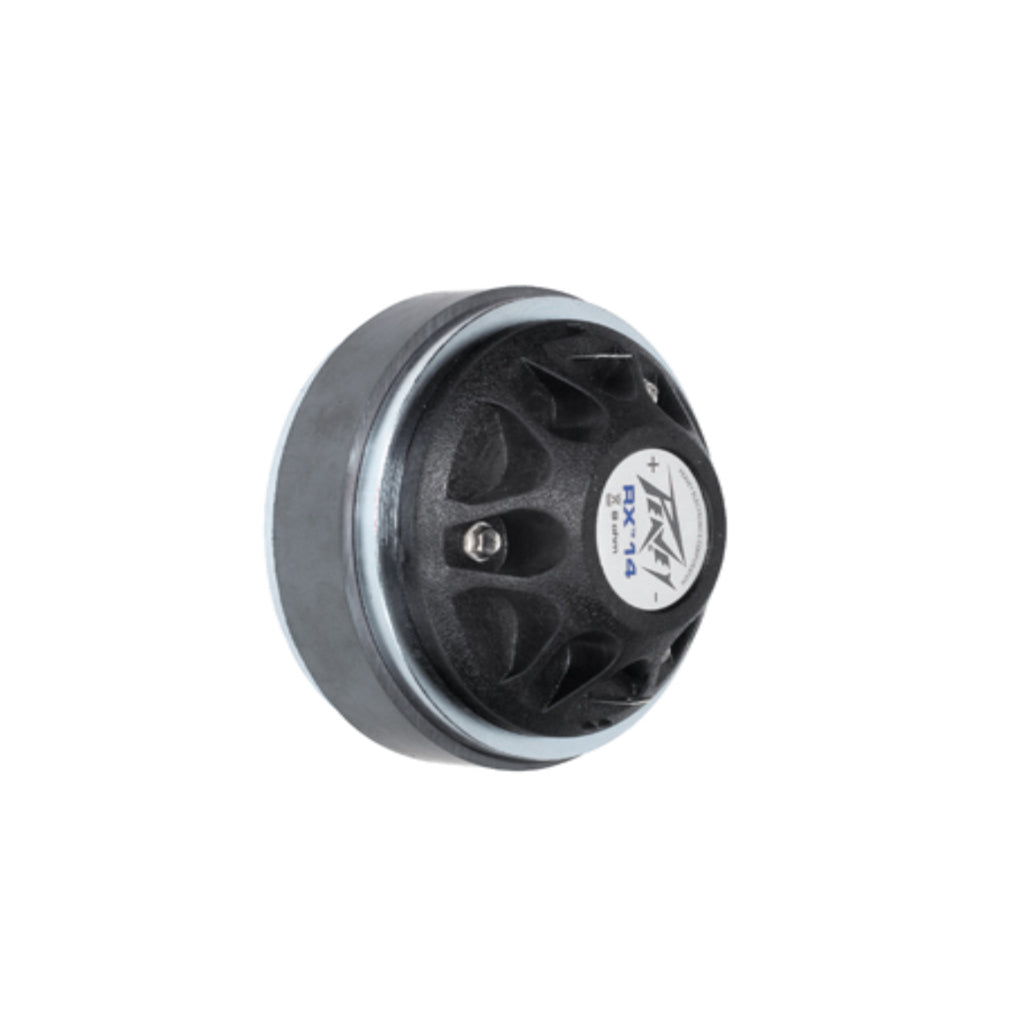

Peavey RX14 Driver

The Peavey RX14 is a 1.4″ high-frequency compression driver with a titanium diaphragm, ferrofluid cooling, and 8 Ω impedance, delivering clear, powerful highs for PA systems and horn-loaded speakers.

Key Features:

• Voice Coil Cooling: Ferrofluid

• Shipping Weight: 38 oz.

• Net Weight: 33.6 oz.

• Horn Coupling Threads: Standard 1 3/8" / 18"

• Horn Coupling Diameter: .938" (23.8 mm)
• Voice Coil Material: Edge-wound ribbon with high temp Kapton bobbin

• Voice Coil Diameter: 1.4" / 34.4 mm

• Diaphragm: Commercially pure titanium

• Lowest Recommended Crossover: 2,000 Hz at 12 dB / Octave

• Recommended Crossover: 1,800 Hz at 12 dB / Octave

• Frequency Response: 1.5 kHz to 20 kHz

• Nominal Efficiency: 30%

• Sensitivity: 104 dB SPL 1 Watt at 1 meter On-axis on 90º H x 45º V horn

• Power Capacity 1000 Hz to 20,000 Hz: 120 W peak60 W program30 W continuous

• DC Resistance: 6.8 Ohms

• Minimum Impedance: 7.1 Ohms

• Nominal Impedance: 8 Ohms

• Throat Parameter: .938" / 23.8 mm

• 1.4"
