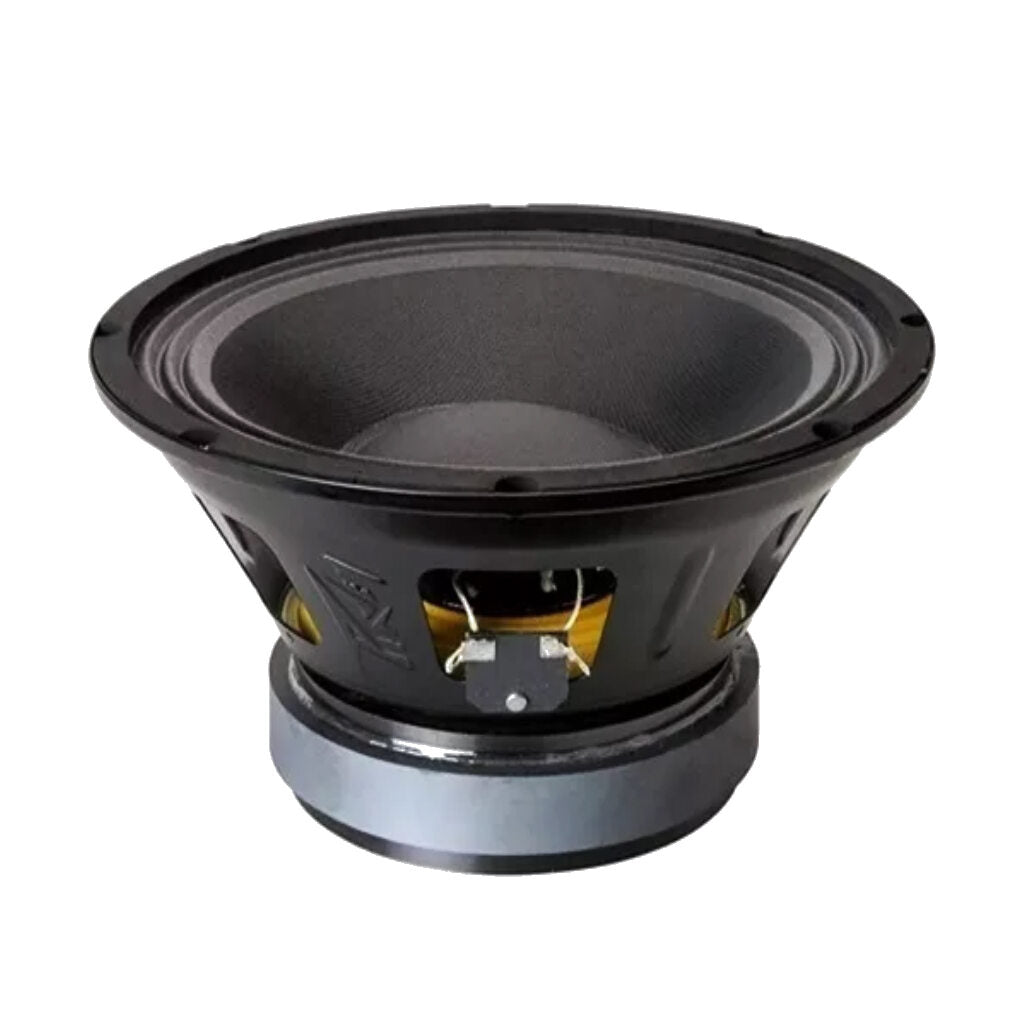

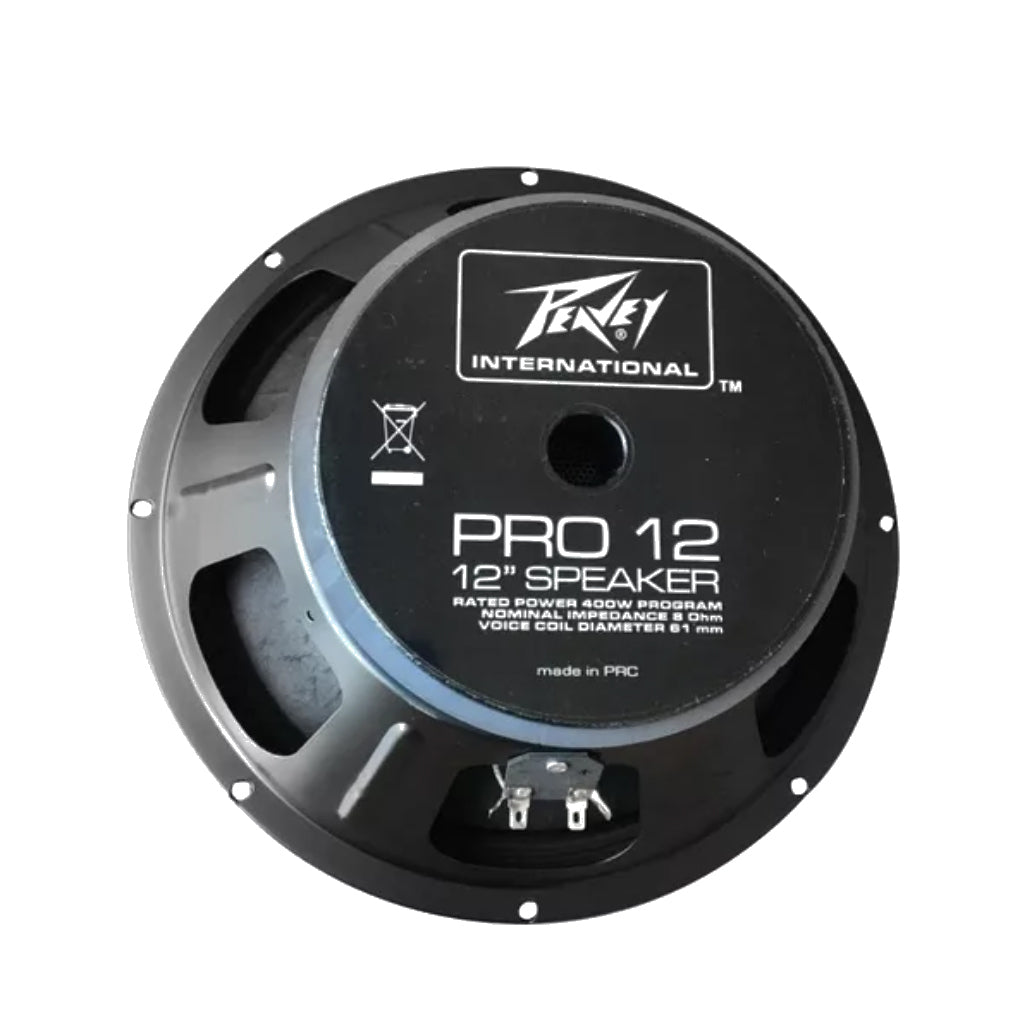

Peavey PRO12-WFR Low-Frequency Woofer / Speaker Driver

The Peavey PRO12 is a high-quality 12" Low-frequency driver suited for PA replacements, custom cabinet builds, or refurbishing. With a Kevlar-impregnated cellulose cone and robust voice coil, it offers clean, reliable performance across mid/bass frequencies.

Applications:
Use as a replacement driver for PA speaker cabinets (Peavey), in custom builds, or in midbass roles in multi-way systems. Be mindful not to exceed continuous power rating for long-term reliability.

Key Features:

• Pro Series 12 Speaker

• PRO 12

• Impedance: 8 Ohms

• Power capacity: 800 W Peak 400 W Program 200 W Continuous

• Sensitivity: 94.3 dB / 1 W 1 m

• Usable freq. range: 50 Hz ~ 4 kHz

• Cone: Kevlar® impregnated cellulose

• Voice coil diameter: 2.375" / 60.3 mm

• Voice coil material: 2 layers, thermally bonded copper wire, Kapton® former,
• Nomex® stiffener

• Net weight lb. / kg: 9.7 lbs. / 4.4 kg

• Znom (ohms) 8

• Revc (ohms) 6.00

• Sd (Square Meters) 0.053
• Pmax (Watts pgm.) 400

• Disp (cu. in. / ml) 73 / 1192 12"

• Weight Unpacked: 9.92 lb(4.5 kg)

• Weight Packed: 12.13 lb(5.5 kg)

• Width Packed: 13.125"(33.3375 cm)

• Height Packed: 14"(35.56 cm)

• Depth Packed: 6.75"(17.145 cm)
