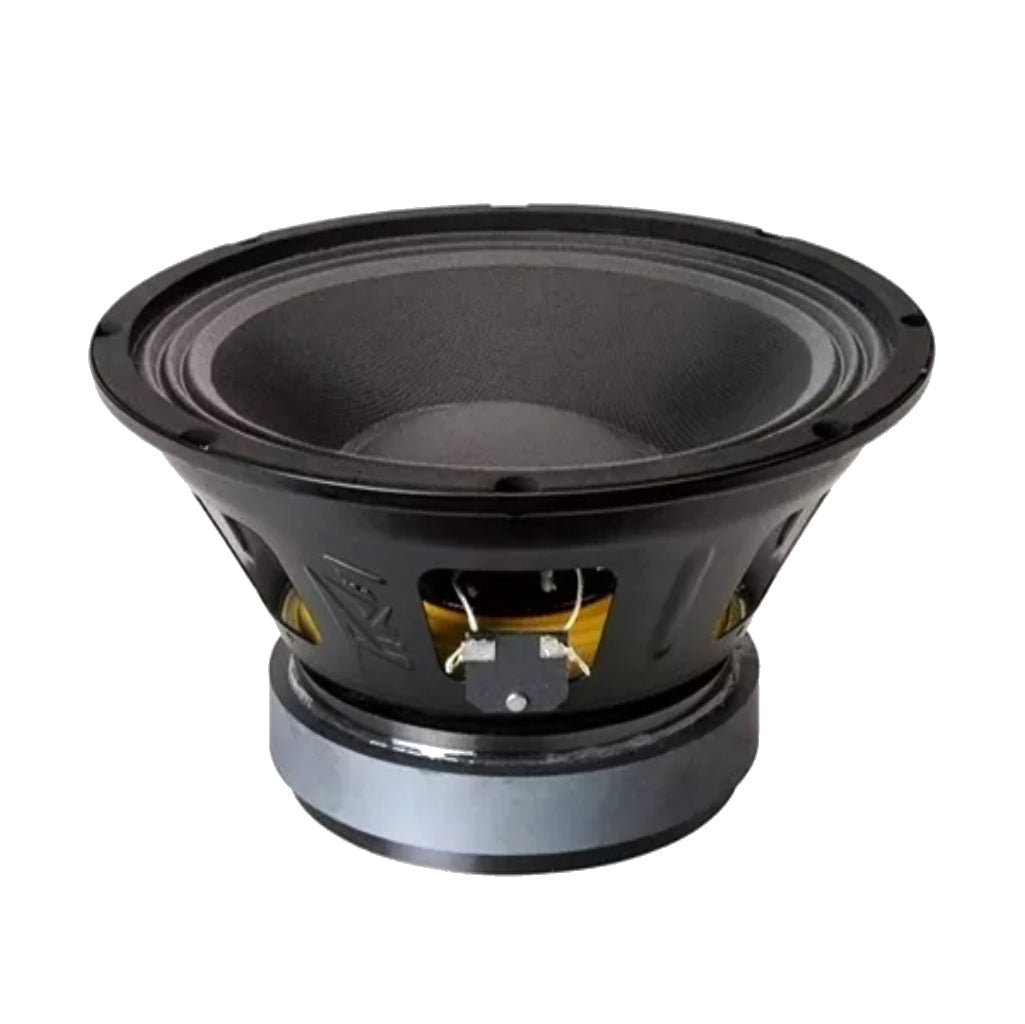

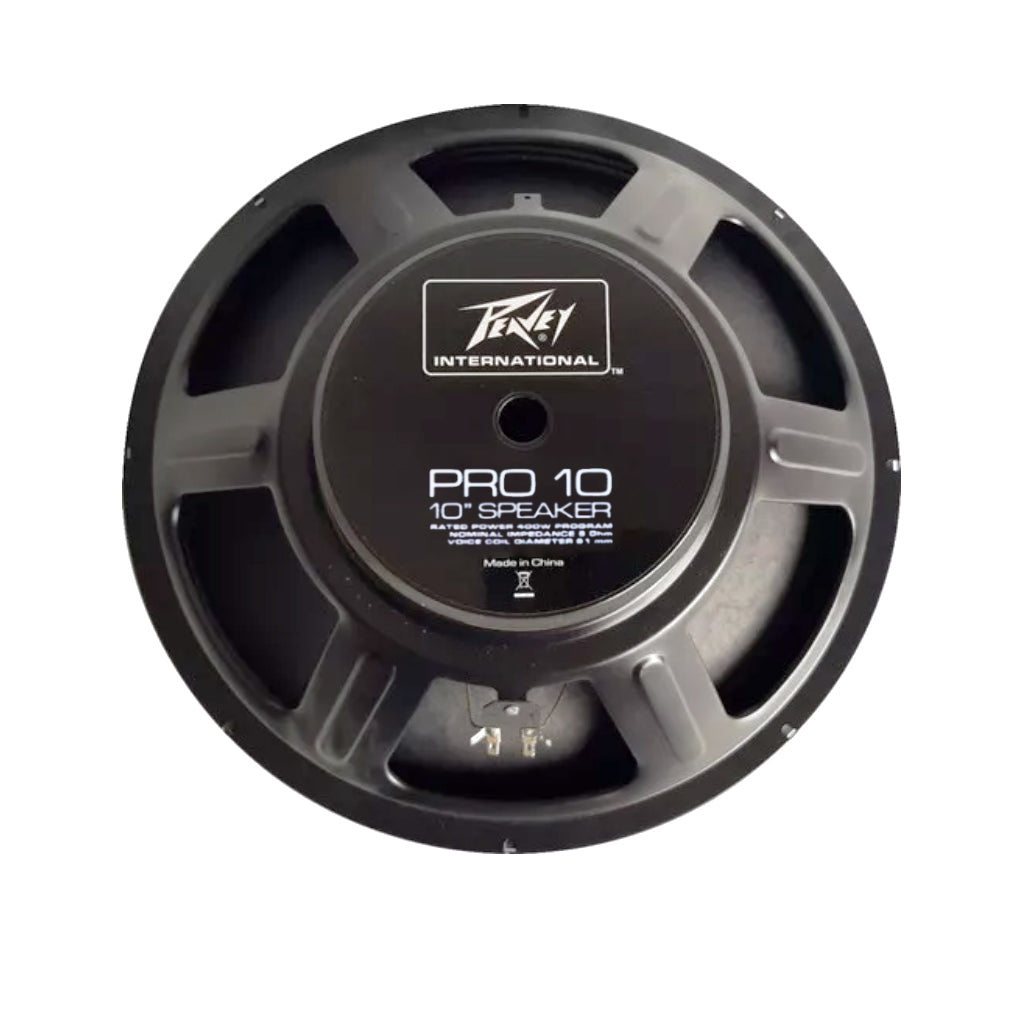

Peavey PRO10-WFR Low Frequency Woofer / Driver

The Peavey PRO10 is a durable 10″ low-frequency driver designed for PA speaker builds, replacement of worn drivers, or custom cabinet projects. With a Kevlar-reinforced cone and a robust voice coil, it offers efficient, dependable sound across mid-bass frequencies.

• Pro Series 10 Speaker:

• Impedance: 8 Ohms

• Power capacity: 800 W Peak 400 W Program 200 W Continuous

• Sensitivity: 94.3 dB / 1 W 1 m

• Usable freq. range: 50 Hz ~ 4 kHz

• Cone: Kevlar® impregnated cellulose

• Voice coil diameter: 2.5" / 63.5 mm

• Voice coil material: 2 layers, thermally bonded copper wire, Kapton® former,
• Nomex® stiffener

• Net weight lb. / kg: 9.5 lbs. / 4.3 kg

• Znom (ohms) 8

• Revc (ohms) 6.00

• Sd (Square Meters) 0.035
• Vd (cu. in. / ml) 10.6 / 173

• Pmax (Watts pgm.) 400

• Disp (cu. in. / ml) 95 / 156410"

• Weight Unpacked: 9.26 lb(4.2 kg)

• Weight Packed: 11.02 lb(5 kg)

• Width Packed: 11.125"(28.2575 cm)

• Height Packed: 12.125"(30.7975 cm)

• Depth Packed: 6.325"(16.0655 cm)
