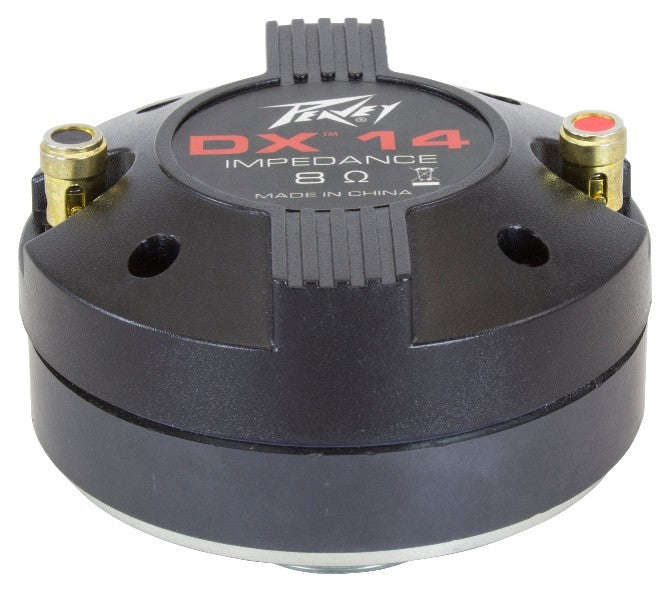

Peavey DX14-HF Diaphragm Kit

The Peavey DX14-HF is a replacement diaphragm kit for the DX14 high-frequency compression driver. It restores the original clarity, response, and performance of your DX14 driver, making it ideal for maintenance, repairs, or upgrades on PA systems and stage monitors.

Key Features:

• Replacement diaphragm kit for the DX14 compression driver
• Titanium diaphragm for reliable high-frequency performance
• Copper Clad Aluminium Wire with high temp Kapton bobbin
• 1.35" / 34.3mm voice coil diameter
• Frequency response: 1.0 Hz – 20,000 Hz
• 103 dB / 1W 1m sensitivity
• 140W peak / 70W program / 35W continuous power capacity
• 8 Ohms nominal impedance
• Recommended crossover: 2000 Hz
• Standard 1 3/8" – 18" horn coupling threads
• Net weight: 2 lbs
